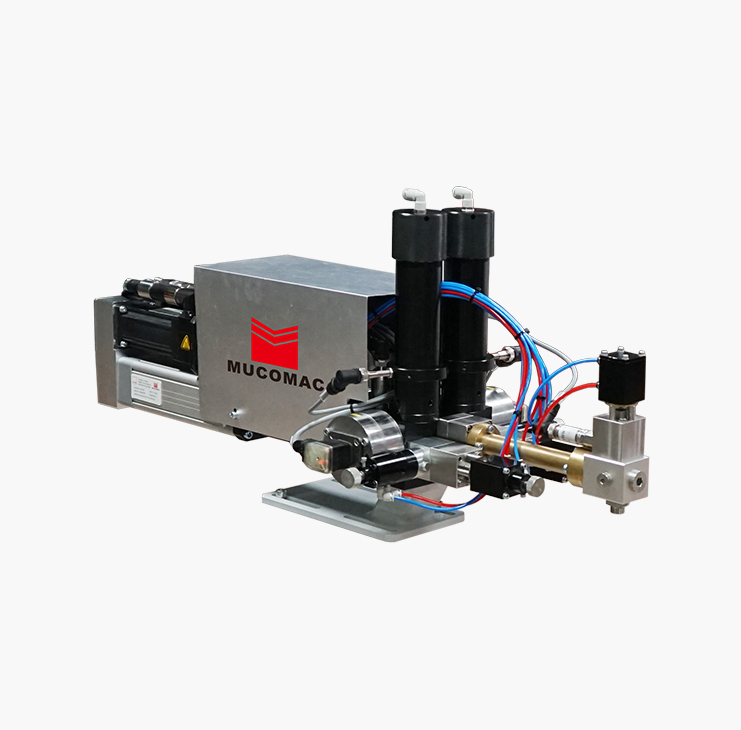

Metering & Mixing System

LSR Micro shot / e-Master / PFM Servo

HIGHLIGHT PERFORMANCE: Visual HMI operation interface; 10.4 inch or larger Touch-operated screen; High precision metering, closed loop monitoring, automatic proportion correction; Servo motor drive; Microinjection, volume range Min.0.12ccm/min to Max.30ccm/min; Suitable for dust-free workshops and high-end product production; Accept ordering in accordance with FDA stan.

HIGHLIGHT PERFORMANCE

Smart Precision

Easy to use

Safe and stable

Quality assurance

Parameters

TECHNICAL DATA
Viscosity	1,000,000 mPas
Output mixed material	Min. 0.12 ccm to Max. 30ccm/min (depending on viscosity)
Mixing ratio	1:1 or variable
Color metering	depending on offer
Actuation	Servo motor drive
Electric data	380–480 VAC, 50-60 Hz (3P+PE), 16A or 230–400 VAC, 50-60Hz (3P+PE) 16A
Connection LIM machine	24V
Pneumatic system	R1/4”,6 bar low
Weight	450 to 650 kg
Dimensions	1,030 x 1,112 x 1,950 mm (W x D x H)

Related information download: LSR Micro shot / e-Master / PFM servo
