Liquid Injection Molding

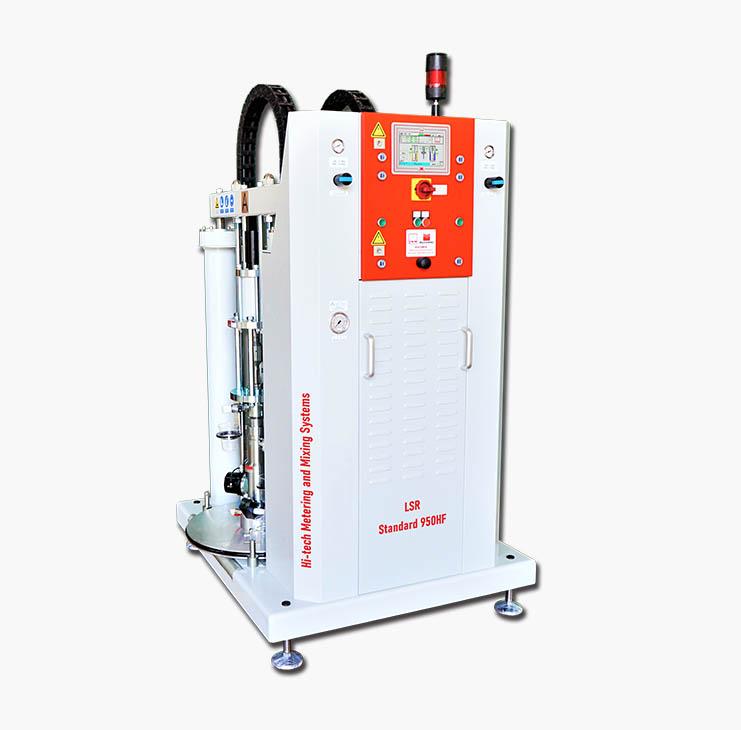

LSR Standard 950HF

Metering & Mixing System

HIGHLIGHT PERFORMANCE: Visual HMI operation interface; 7-inch touch screen; Hydraulic driven, compact and delicate equipment; High configuration, low investment cost; Especially suitable for production lines without much change in product structure.

HIGHLIGHT PERFORMANCE

Economical

Easy to use

Safe and stable

Quality assurance

Parameters

TECHNICAL DATA
Viscosity 1,000,000 mPas
Output mixed material 800 g/min (depending on viscosity)
Mixing ratio 1:1 or variable ± 5%
Color metering 0.3% ~ 4%
Actuation Hydraulic
Electric data 380–480 VAC, 50-60 Hz (3P+PE), 16A
Connection LIM machine 24V
Pneumatic system R1/4”,6 bar low
Weight 745 kg
Dimensions 1,030 x 1,112 x 1,950 mm (W x D x H)
(Height +800 mm if pump completely lifted)

Related information download: LSR Standard 950HF
